XGN2-12 Box type fixed metal enclosed switchgear
Brand: Henan Mingkong
Model: XGN2-12
Product Type: Indoor Box Type Fixed Metal-Enclosed Switchgear
Rated Voltage: 3.6–12kV
Core Feature: Fixed metal-enclosed structure, IP2X protection, vacuum circuit breaker option
Key Advantage: High short-circuit withstand strength, five-proof interlock safety design, low maintenance
Application: Power plants, industrial substations, mining facilities, 12kV distribution networks
Conditions of Use: Altitude ≤ 1000m, ambient temperature -15°C to +40°C
Introduction
A: Product Overview
The XGN2-12 Box Type Fixed Metal-Enclosed Switchgear is a robust, standards-compliant solution designed for reliable power distribution in 3.6–12kV, 50Hz three-phase AC systems. Built to handle rated currents from 630A to 3150A, it supports single busbar, double busbar, and single busbar bypass configurations, making it versatile for power plants, substations, and industrial mining facilities.
Manufactured in compliance with IEC 60298, GB3906, DL/T402, and DL/T404 standards, this switchgear meets the strict “five-proof” interlock requirements to prevent misoperation and ensure maximum safety for personnel and equipment. Its high short-circuit performance, with rated breaking currents up to 40kA and withstand currents up to 100kA peak, delivers dependable protection against overloads and faults. The design also ensures superior insulation strength, with power frequency withstand voltages of 24/32/42kV and lightning impulse withstand voltages of 40/60/75kV, guaranteeing stable operation under harsh electrical conditions.
Compact and practical, the XGN2-12 features a footprint of 1100×1200×2650mm and a weight of approximately 700kg, ideal for space-constrained indoor substations. It supports both electromagnetic and spring energy storage operating mechanisms, offering flexible control options for diverse system needs. With an IP2X protection rating, it operates safely at altitudes up to 1000m, within temperatures of -15°C to +40°C, and in environments free from corrosive or flammable gases.
Key advantages include its simple and reliable fixed structure, which minimizes maintenance needs and reduces long-term operational costs. The switchgear is engineered for easy installation and straightforward maintenance, with accessible components that simplify routine inspections and repairs. Engineered for low maintenance and long service life, this fixed metal-enclosed switchgear provides a cost-effective, reliable choice for medium-voltage power distribution projects worldwide.

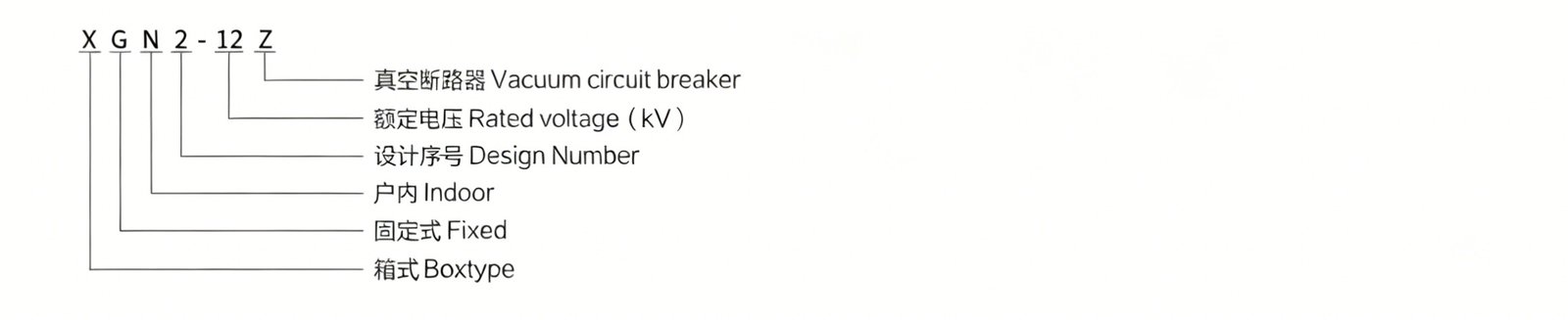

B: Model meaning
C: Conditions of Use
- The altitude does not exceed 1000m;
- Ambient temperature:-15°C ~+40°C;Humidity: the daily average value is not more than 95%, the daily average value of water vapor pressure does not exceed 2.2KPA; themonthly average value is not more than 90%, and the monthly average value of water vapor pressure does not exceed 1.8KPA;
- Earthquake intensity:no more than 8 levels;
- There is no obvious pollution such as corrosive or flammable gas.

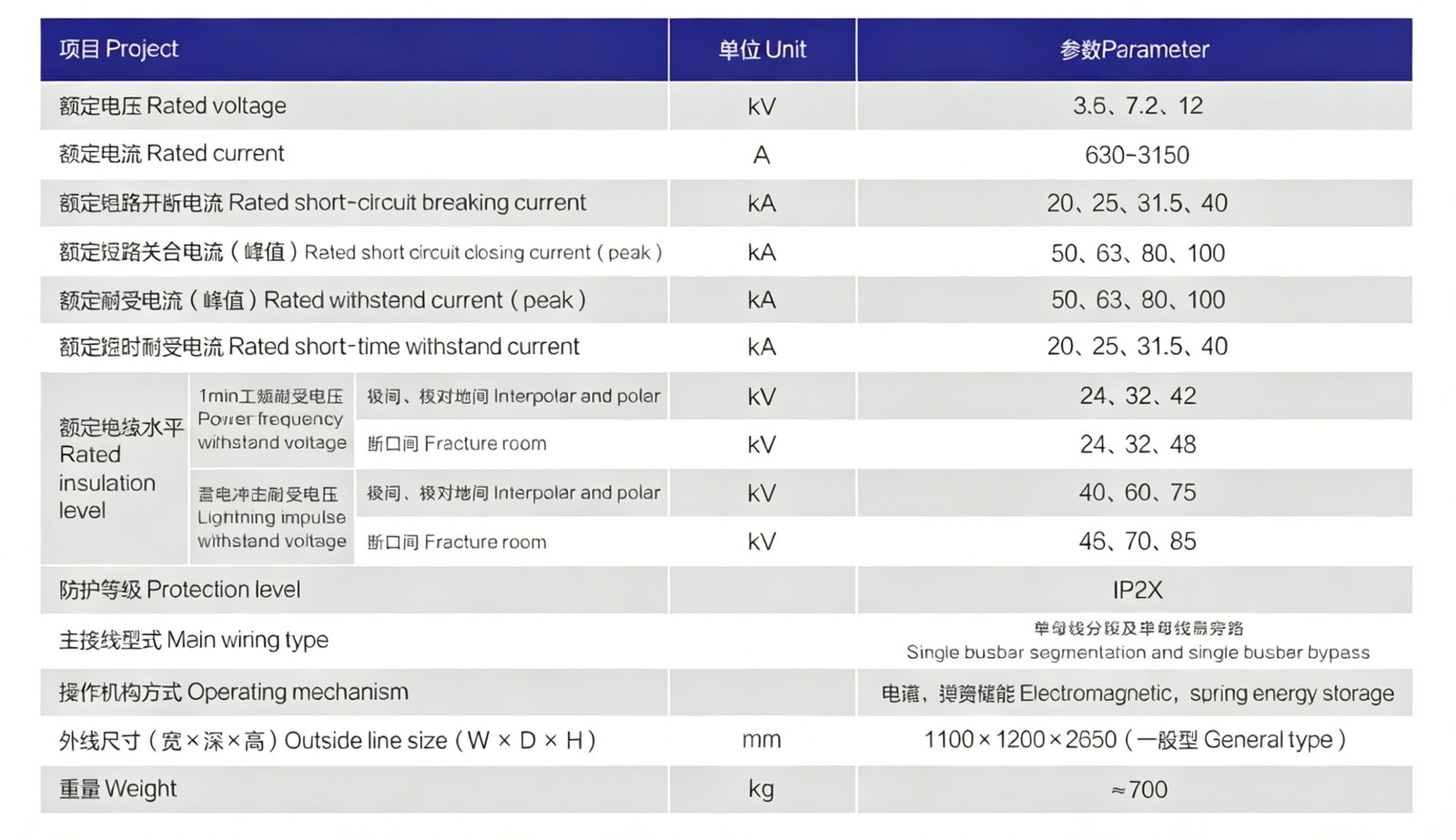

D: Load switch technical parameters
For industrial and utility buyers seeking a reliable, cost-effective 12kV distribution solution, the XGN2-12 box-type fixed switchgear is engineered to meet core project requirements:
- Scalable current range (630A–3150A) accommodates diverse load profiles, making it suitable for small to large-scale substations and industrial facilities.
- High short-circuit withstand capability (up to 40kA breaking, 100kA peak) ensures robust fault protection, reducing equipment damage risks and downtime costs.
- Compliant insulation performance (up to 48kV power frequency and 85kV lightning impulse withstand voltages) meets IEC/GB standards, supporting safe, long-term operation in demanding electrical environments.
- Flexible operation (electromagnetic or spring mechanisms) and compact footprint (1100×1200×2650mm) simplify installation and maintenance, lowering lifecycle costs for your project.
- IP2X protection rating enhances safety in indoor environments, aligning with the reliability and low-maintenance needs of commercial and industrial power distribution projects.
E: Related Products
KYN28A-24 Armored Removable AC Metal-Enclosed Switchgear and XGN17-40.5 Box-Type Fixed AC Metal-Enclosed Switchgear
- For medium-voltage distribution projects requiring flexible maintenance and scalability, the KYN28A-24 draw-out switchgear is designed for 24kV systems. It features a three-compartment withdrawable structure, VS1 vacuum circuit breakers, and high short-circuit withstand strength, making it ideal for power plants, industrial substations, and mining facilities.
2.When upgrading to higher-voltage applications up to 40.5kV, the XGN17-40-5 fixed switchgear offers a robust, cost-effective solution. Built with a compact box-type design and proven performance, it delivers reliable power distribution in substations and industrial power systems.
