SC (B) 10 Dry Type Transformer
Brand: Henan Mingkong
Model: SC (B) 10
Product Type: Non-excitation Voltage Regulating Indoor Dry Type Distribution Transformer
Rated Voltage: 10kV / 20kV / 35kV High Voltage, 0.4kV Low Voltage
Rated Capacity: 30kVA ~ 20000kVA
Core Feature 1: Low loss energy efficiency level 10, epoxy resin fully cast, IP20 protection grade, meet GB6450 & IEC726 international standards
Key Advantage: Optional B/F/H multi insulation heat resistance grades, automatic temperature control & air cooling system, optional foil low voltage winding, low noise & fire resistant
Application: Urban power grid reconstruction, industrial substation, mining plant, commercial complex, underground power station, new energy distribution project
Introduction
A: Product Overview
SC(B)10 Dry Type Transformer is three-phase epoxy cast indoor distribution transformer specially developed to convert 10kV, 20kV and 35kV high voltage grid power to 400V low voltage distribution power or secondary 10kV transmission power for global power engineering projects. This SC(B)10 dry type transformer series brings prominent economic and construction benefits widely recognized by contractors; it cuts land occupation and multi-stage substation construction to lower total project investment, eliminates redundant 10kV transformation links to slash long-term operation and maintenance costs, applies high-voltage low-current transmission to reduce cable line loss, and delivers stable power supply for various industrial and municipal power scenarios.

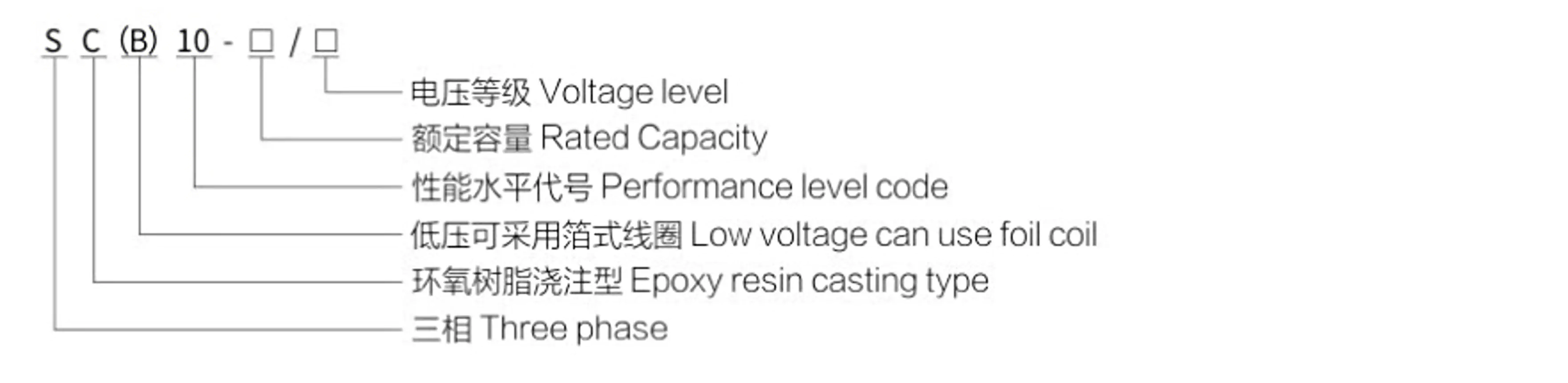

B: Model meaning
C: Producr Features
The SC(B) 10 series 10kV class. 20kV class and 35k cass non-exciting voltage regulating dry type transformers produced by ourcompany are low-loss products, which meet the requirements of national standards GB6450, GB/T10228 and EC726, and have the following characteristics:
- High performance, low loss, and a replacement for the 9 series.
- Selecthigh-quality silicon steel sheet, and greatly reduce the magnetic fux density. reduce the amountof magnetostriction of the siliconsteel sheet during operation, and effectively reduce noise.
- Optimize the structure of the high-voltage coil, improve the distribution of voltage and capacitance between the layers, greatly improvethe produc’s abity to wthstand the atmospheric overvotage and operating overoltage, and also improve the electric field distributionso that the product volume is further reduced.
- The temperature control system and air-cooling device can be configured to automaticaly start the fan cooling device when the load istoo large, which can effectively improve the overload capacity of the equipment.

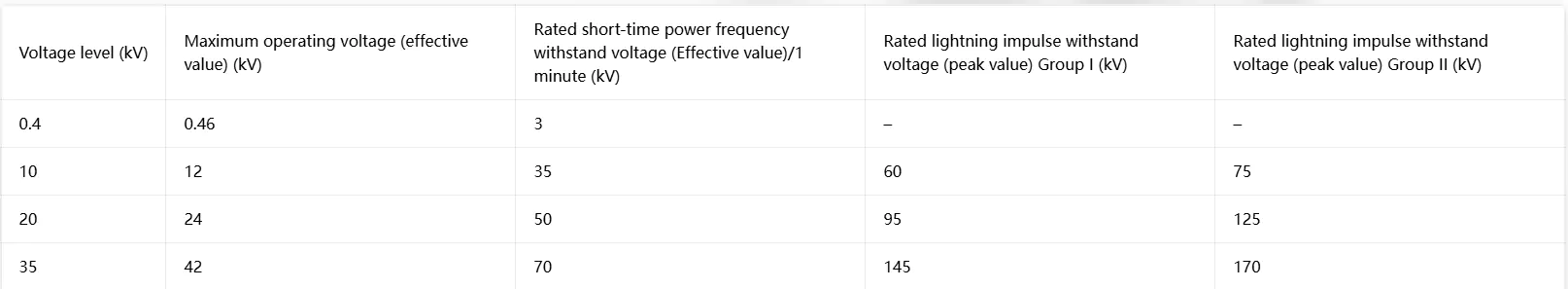

D: Insulation level
E: Technical Parameters

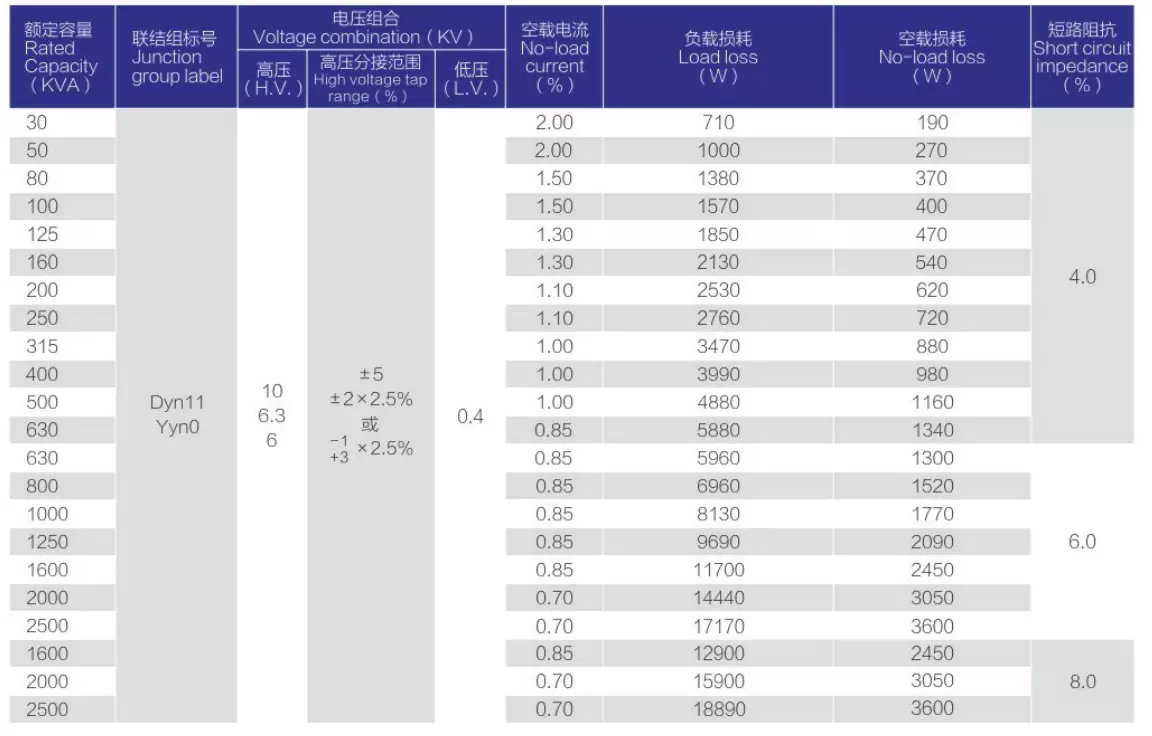

10kV class SC (B) 10 series electric transformer performance parameter table

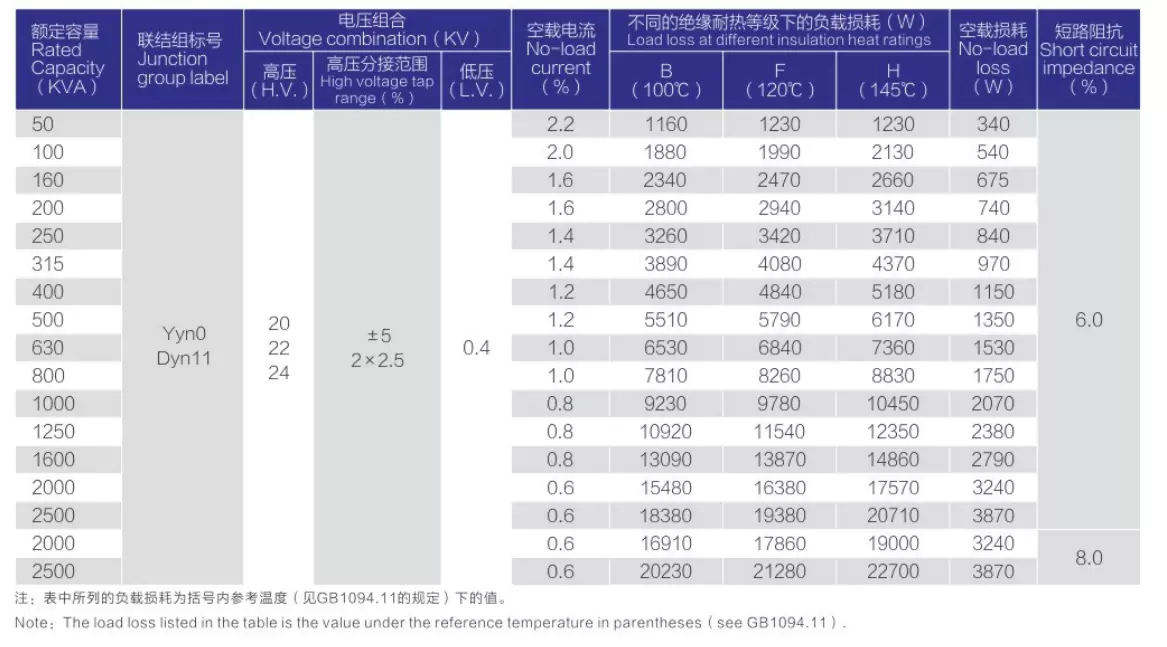

20kV class SC (B)10 series non-excitation voltage regulating distribution transformer performance parameter table

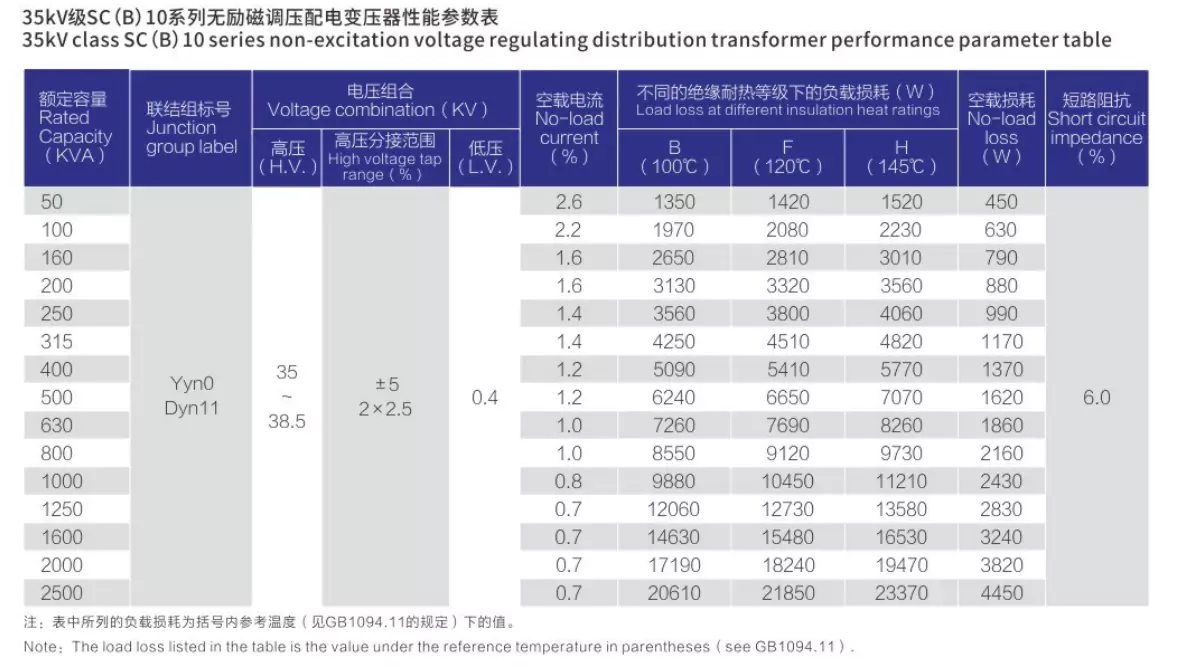

35kV class SC (B) 10 series non-excitation voltage regulating distribution transformer performance parameter table

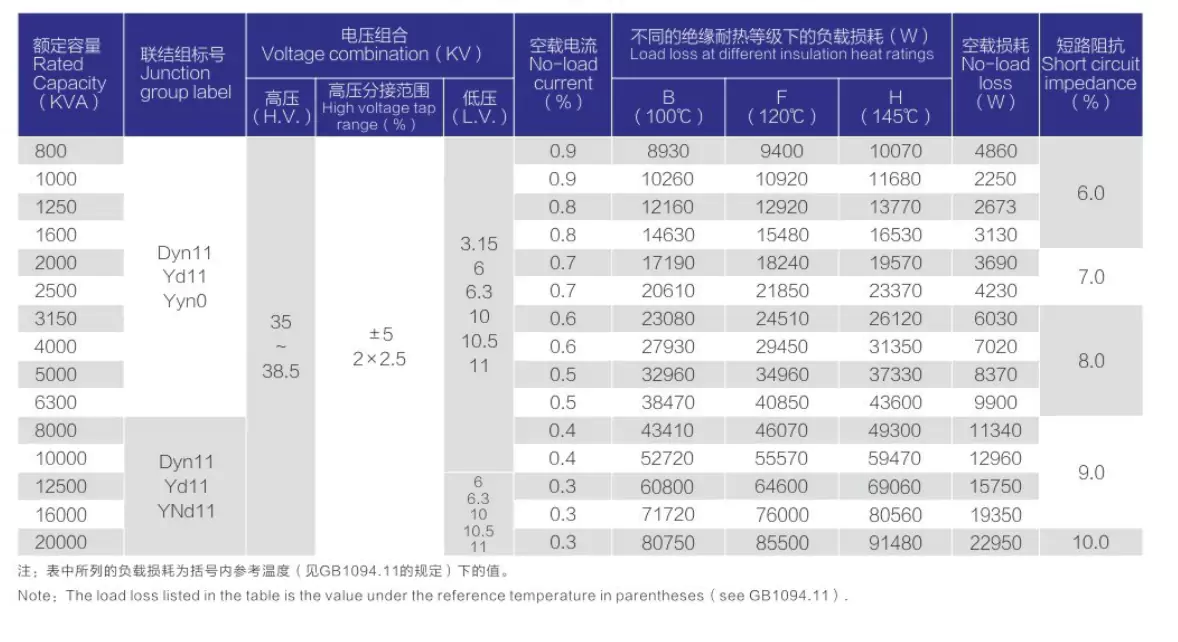

35kV class SC (B) 10 series non-excitation voltage regulating dry power transformer performance parametertable
F: Common Concerns of Overseas Engineering Buyers
Global contractors, factory investors and municipal grid builders usually face 4 core troubles during transformer procurement:
- Unable to match local 10kV/20kV/35kV grid voltage standards, leading to equipment unusable after delivery;
- Unclear loss parameters, resulting in continuous high electricity operating costs in long-term operation;
- Single insulation grade cannot adapt to high-temperature, closed or thunderstorm-prone operating environments;
- Unmatched short-circuit impedance causes damage to supporting high voltage switchgear during short-circuit impact.
G: How Our Complete Parameter Tables Solve All Your Worries
- Full voltage grade coverage
Our parameter sheets include 10kV, 20kV and 35kV~38.5kV series, covering mainstream medium voltage grid standards in Africa, Middle East, Southeast Asia and South America, no customized extra cost for voltage matching. - Clear loss data to control long-term power cost
All tables mark accurate no-load loss and load loss under standard reference temperature, buyers can calculate annual power consumption expense accurately to judge project return cycle. - Optional 3 insulation heat resistance grades
20kV & 35kV models provide Class B (100℃), Class F (120℃), Class H (145℃) load loss data, you can select proper insulation grade for tropical high-temperature, underground enclosed substations to extend transformer service life. - Graded short-circuit impedance matching
Different capacities adopt 4.0% / 6.0% / 7.0% / 8.0% / 9.0% / 10.0% classified impedance, perfectly compatible with our KYN28A-12 high voltage switchgear, effectively resist short-circuit current impact. - Ultra-wide capacity range for all project scales
Complete capacity from 30kVA small workshop distribution to 20000kVA large industrial park centralized power supply, covering small, medium and heavy industrial projects.
H: One-stop Technical Support & After-sales Service
If you are confused about model selection, voltage matching or insulation grade confirmation, please send us your local grid parameter, factory total load and operation environment. Our professional electrical engineers will provide:
- Free customized transformer selection scheme & technical drawing
- Complete matching scheme of high & low voltage distribution cabinet
- Official test report complying with IEC & GB standards for tender submission
- 12-month factory global warranty + remote technical guidance
