Box substation series

A: Product Overview

The ZMXB2 Miniaturized Intelligent Prefabricated Substation is a highly integrated, compact power distribution solution specially developed to meet the growing demand for space-saving and smart grid-friendly equipment in modern urban power systems. As land resources become increasingly scarce in cities, the requirement for miniaturized substations has become more urgent, and this product effectively addresses the contradiction between power supply capacity growth and land use efficiency.

Compared with traditional substations, the ZMXB2 prefabricated substation reduces floor space by more than 60%, making it ideal for urban power grid reconstruction, residential communities, commercial plazas, and other projects with limited space. Its modular design allows for factory prefabrication, which greatly simplifies on-site installation work, shortens the construction cycle, and helps customers save significant construction costs and time.

The “intelligent” feature is one of the core advantages of the ZMXB2 model. It is equipped with an intelligent monitoring and protection system that supports real-time data collection, remote monitoring, and fault diagnosis. Operators can check the equipment status and receive early warnings anytime and anywhere, which greatly reduces the need for on-site maintenance and lowers operational costs. The system also supports automatic alarm and protection functions, improving the safety and reliability of power distribution.

In terms of safety and compliance, the ZMXB2 meets national and industry standards, including relevant specifications for distribution network typical design. It can also be customized to meet different regional and project requirements. As a professional manufacturer with more than 11 years of export experience, Mingkong provides comprehensive after-sales support, including installation guidance, technical training, and maintenance services, to ensure the stable and long-term operation of the equipment.

In addition to standard configurations, we also offer customized solutions for different voltage levels, capacities, and environmental conditions. Whether you are working on a large-scale urban power grid project or a small commercial distribution project, the ZMXB2 prefabricated substation can provide a reliable, efficient, and cost-effective solution that meets your specific needs.

B: Conditions of Use

• Maximum ambient temperature: +45°C;
• Maximum monthly average temperature: +35°C;
• The highest annual average temperature: +20°C;
• Minimum ambient temperature: -15°C;
• Relative humidity: highest monthly average: 90% (20°C);
• highest daily average: 95% (20°C );
• Pollution level: Level IIl.

C: Product Features

This product is a replacement for Combined substation(US). It has a smallfootprint and is easy to make fulluse of the originalenvironmentand foundation for uparading and transformation. The construction period is short and investmentis saved. The European-style box hasa variable structure design and a variety of appearances, which can be designed to integrate with the surrounding environment. Thecommunication room is equipped with remole control and date uploading to improve operation and maintenance efficiency. Comparedwith the American box, it has many functions, strong ring network capabiity, and more stable and sate operation.

• Standardization: unified program, unified construction standerds, and modularization;
• Lean: fully sealed, fully insulated, promote new technologies, new processes, improve equipment operation level;
• Shell mechanism: purchase stainiess steel or cattbon steel materials, good corrosion resistance;
• Shell size: 2250x 1300×2300 (width x depth Xheight unit mm).

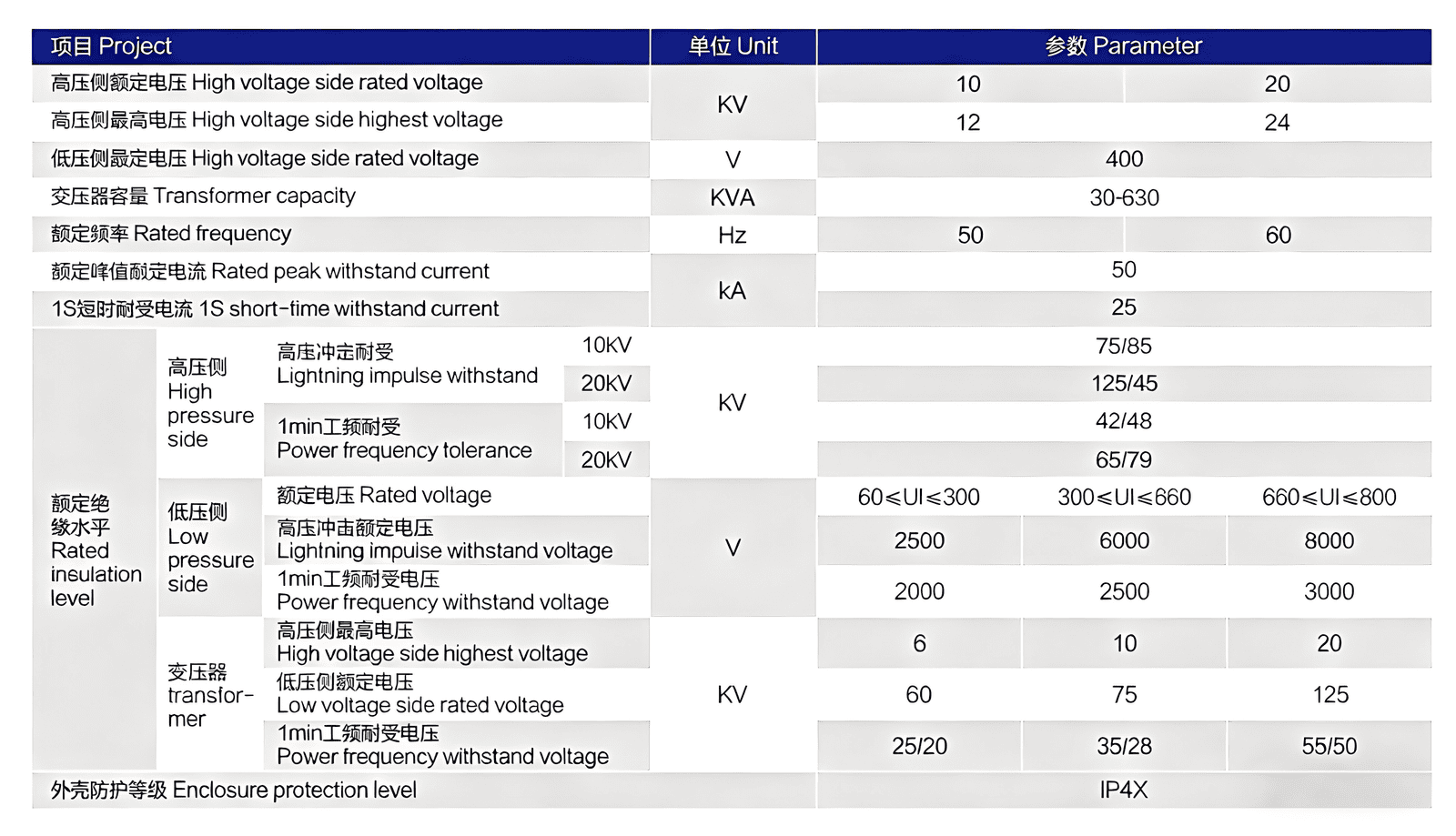

D: The main technical parameters
